GE® 30" Free-Standing Gas Range

Edge-to-edge cooktop

• Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

Power boil burner

• This 18,000-BTU power boil element produces intense heat to boil water fast

Center oval burner

• This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware

Precise simmer burner

• This burner setting provides low, even heat so delicate dishes don't burn

Self-clean oven

• This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners

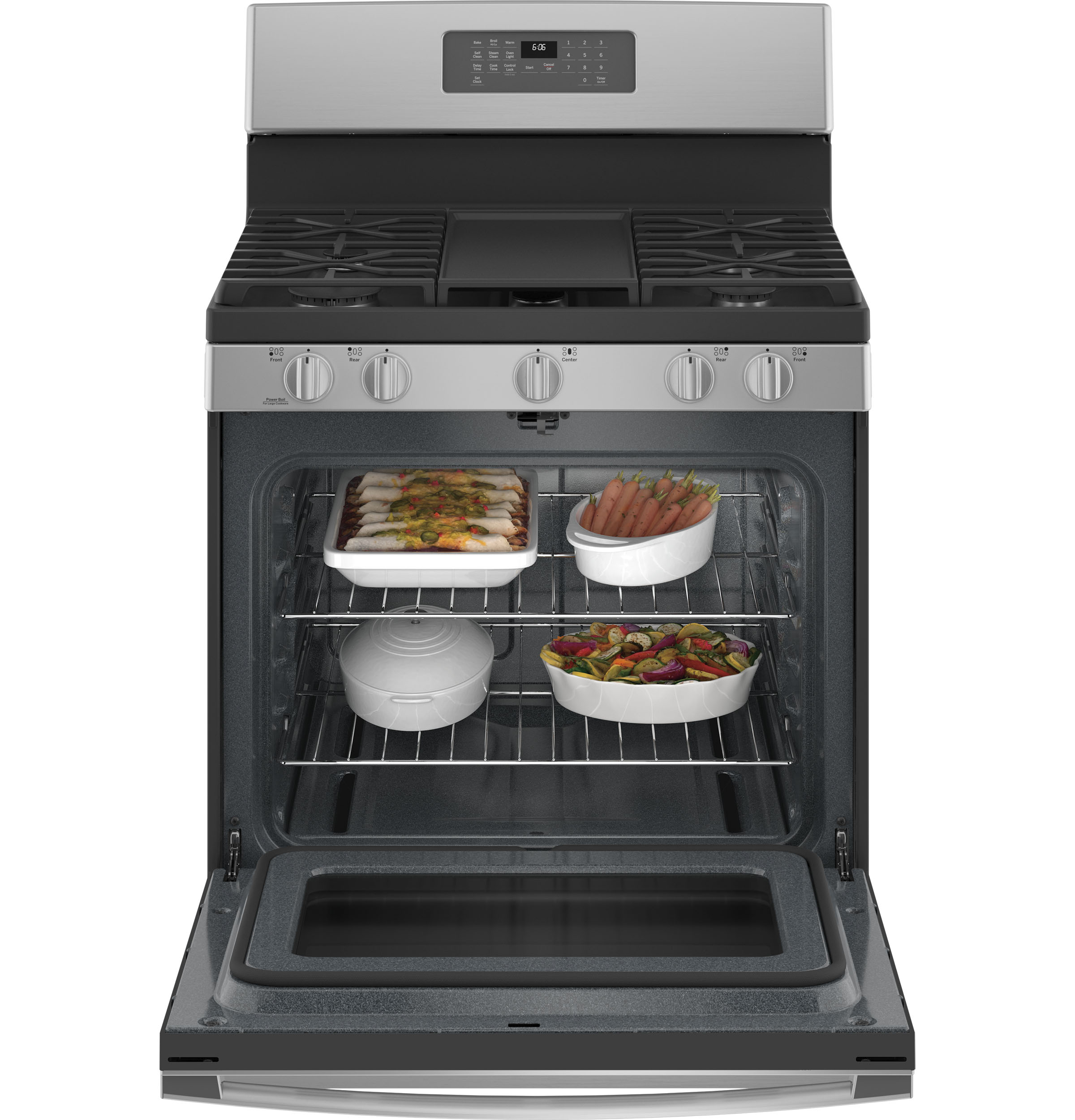

Large capacity oven

• Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes

Heavy duty, dishwasher-safe grates

• These cooktop grates can be cleaned one of two ways – either in the dishwasher, or on the bottom of a self-clean oven

Removable storage drawer

• A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen

Delay bake

• Delay bake technology allows you to set up the oven to start preheating and baking at a later time

Enhanced Shabbos Mode

• The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

ACCESSORIES
Optional Accessories	WB48X21543 Roller Rack
Griddle Accessory	JXGRILL1 Cast Iron Reversible Grill/Griddle (Optional)
Grates	JXGRATE1 (Optional)
LP Conversion Kit	Included

APPEARANCE
Cooktop Burner Grate Color	Matte Black
Oven Door Features	Big View Oven Window
Handle Design	Designer Style
Handle Color	Stainless Steel Appearance
Control Knobs	Stainless Steel Appearance
Color Appearance	Stainless Steel

CAPACITY
Total Capacity (cubic feet)	5 cu ft

FEATURES
Ignition System	Electronic
Burner - Right Rear	12,000 BTU
Oven Control Features	Audible Preheat Signal, Auto Self Clean, Control Lock Capability, Delay Bake Option, Sabbath Mode
Oven Rack Features	2 Oven Racks
Power Boil Burner	Yes
Burner - Left Rear	5,000 BTU Precise Simmer
Oven Cleaning Type	Self-Clean
Griddle	WB31X24738 Integrated Non-Stick (Included)
Product Type	Free-Standing Single Oven
Cooktop Type	Continuous Grates
Cooktop Burner Grate Material	Heavy Cast Iron
Fuel Type	Natural Gas
Burner - Center	10,000 BTU Oval
Interior Oven Light	1 Incandescent
Cooktop Burner Grate Features	Continuous Grates
Control Type	Digital Temperature Display, Electronic Oven Controls, Electronic Touch
Burner - Left Front	18,000 BTU Power Boil
Drawer Type	Storage
Sabbath Mode	Yes
Cooking Technology	Traditional
Configuration	Range with Storage Drawer
OU Certified	OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Cooktop Burner Type	Sealed
Burner - Right Front	9,500 BTU
Cooktop Surface	Edge-to-Edge, Gray, One-Piece Upswept, Porcelain-Enamel

FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Gas
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Edge-to-Edge Cooktop	Yes
App Filter - Drawer Type	Storage
App Filter - Cleaning Type	Self-Clean
App Filter - Cooktop Type	Continuous Grates

POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0
Volts/Hertz/Amps	120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)	(1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 12.0 Broiler

WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

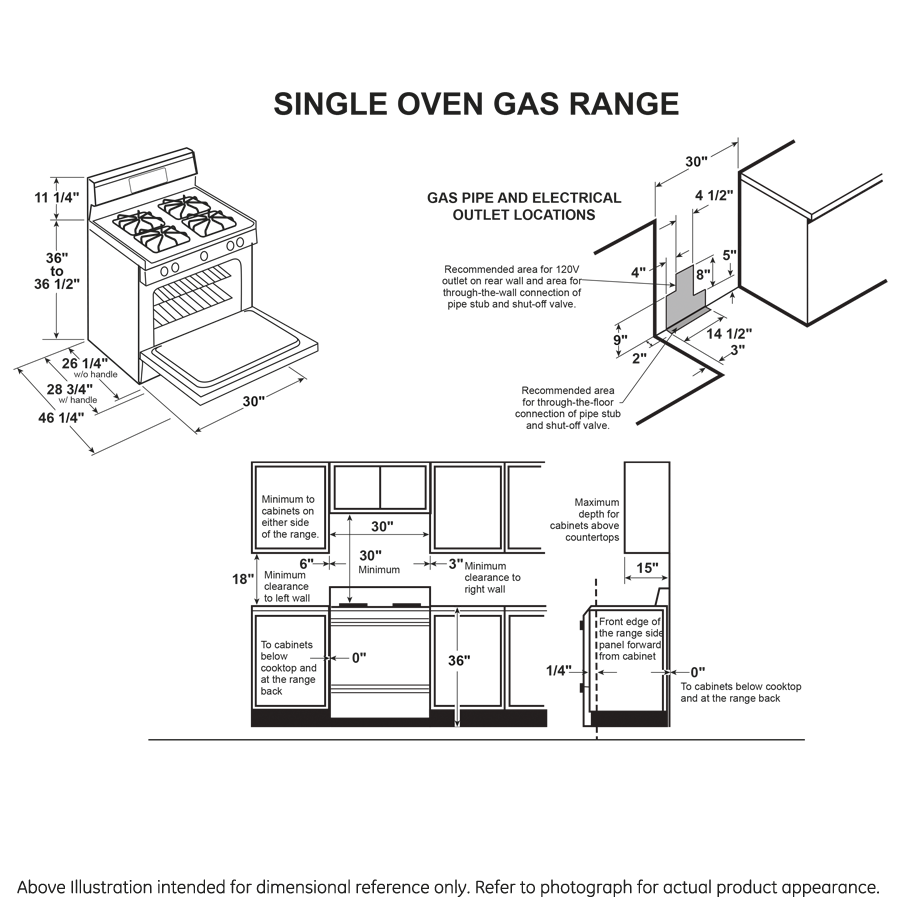

WEIGHTS & DIMENSIONS
Net Weight	195 lb
Depth Without Handle	26.25 in
Height to Cooking Surface (in.)	36 - 36 1/2
Cabinet Width	30 in
Approximate Shipping Weight	215 lb
Overall Width	30 in
Overall Height	47.25 in
Overall Depth	28.75 in
Depth with Door Open	46.25 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 19 x 19
