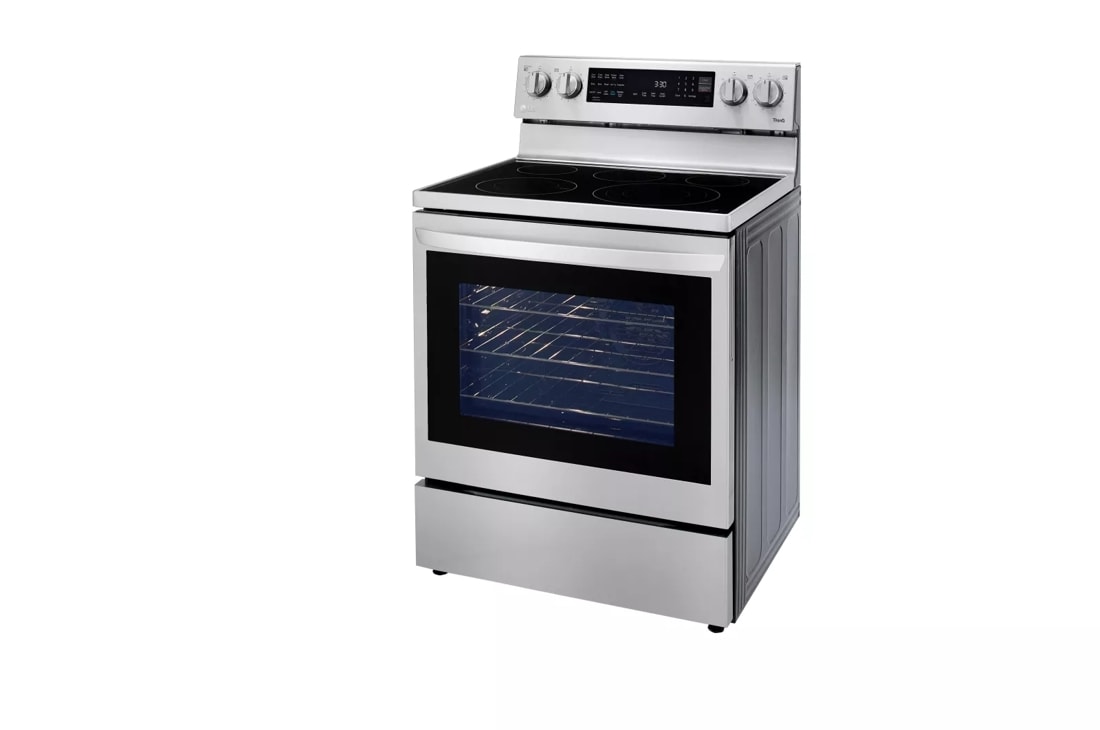

6.3 cu ft. Smart Wi-Fi Enabled True Convection InstaView Electric Range with Air Fry

ThinQ Offer

• Get a free extra year limited warranty (up to $185 value) through 7/10/24. Terms apply?

• 6.3 cu ft. Large Capacity

• InstaView® Window

• Built-In Air Fry with True Convection

• EasyClean® + Self Clean

• 3-in-1 Element

• ThinQ® Technology with ThinQ Care

Dimensions
Width	29.87
Height	46.50
Depth	28.87

APPEARANCE
Oven Door Feature	InstaView® & WideView™ Window
Cooktop Finish	Ceramic Glass, Stainless Steel
Knobs	Stainless Steel Appearance, Weighted
All Available Colors	PrintProof® Stainless Steel

CAPACITY
Total Capacity	6.3 cu.ft.

CONTROLS
Oven Control Type	SmoothTouch™ Glass Controls
Oven Control Lock	Yes
Sabbath Mode	Yes
Kitchen Timer	Yes
Timed Cook	Yes

COOKING APPLIANCE THINQ® SMART FEATURES
3rd Party Connected Compatibility	Amazon Alexa, Google Assistant
SmartDiagnosis™	Yes
ThinQ® Smart Technology	Yes
ThinQ Care™	Yes
Wi-Fi Connectivity	Yes

COOKTOP
Element Size/Wattage - Center	7" - 100W
Element Size/Wattage - Left Rear	6" / 1200W
Element Size/Wattage - Right Rear	6" / 1200W
Element Size/Wattage - Right Front	12" 9" 6" - 3,000W / 2,200W / 1,100W
Type	Radiant, Ceramic Glass
Element Size/Wattage - Left Front	3200W (9") / 1400W (6") (UltraHeat™)
Hot Surface LED Indicator	Yes

DIMENSIONS/CLEARANCES/WEIGHT
Shipping Dimensions (WxHxD)	32 1/2" x 51" x 30 1/2"
Product Weight (lbs)	168 lbs
Overall Height (in)	46.5"
Overall Depth (in) - including handle	28.87"
Shipping Weight (lbs)	191 lbs
Cabinet Width (in)	30"
Overall Width (in)	29.87"

DRAWER FEATURES
Type	Storage

FEATURES
EasyClean® Interior	Yes

LOWER OVEN FEATURES
# of lights	7

OVEN FEATURES
Self-Clean Oven Door Lock	Automatic
Oven Modes	Bake, Broil, Air Fry, Proof, EasyClean®, Self Clean, Convection Bake, Convection Roast Keep Warm, Frozen Meal, Slow Cook, Favorite
Bake Element	3400W
Oven Cleaning Type	EasyClean® + Self Clean
Oven Light	Halogen
Oven Cooking System	True Convection
Broil Element	4200W
Oven Type	Single Oven
Convection Conversion Auto-Adjust	Yes
Broil element pass	3
Hidden Bake Element	Yes
Door Lock	Yes

POWER/RATINGS
Required Power Supply (amp)	40a
KW Rating at 208V	9.7
KW Rating at 240V	12.9
Amp Rating at 208V	46.6
Amp Rating at 240V	53.8

SUMMARY
Series	LG
Fuel Type	Electric

VENTING SYSTEM
Vent Air Flow (CFM)	5

WARRANTY/UPC
UPC	048231341455
